Modules can be used to enhance images created by Allsky. Different modules perform different tasks, and the Module Manager allows you to control which modules run and when.

There are two types of modules:

Allsky Modules are developed and maintained by the Allsky team and are installed with Allsky.
User Modules are developed and maintained by other people and can optionally be installed and deleted if no longer required.
User Modules should only be installed from the official user-modules repository using the directions listed there. Installing from other source can be dangerous.

Warning:

Some modules are shown as experimental. Before using these modules you should ensure that you are proficient in analysing Linux log files. Experimental modules can be unstable and as such may "break" Allsky.
Some modules are designed to operate with external hardware, typically connected to the Pi's GPIO pins. Before attempting to use any of these modules make sure you have an understanding of interfacing hardware to the PI's GPIO.

Don't be discouraged by the above warnings - the module system is very flexible and allows you to customise Allsky without having to change any Allsky code.

Module Flows

Modules are run within Flows which determine when the modules run. Each flow can have a different list of modules that are run and the order in which they are run. The different flows are listed below.

The flows in which modules run are:

Daytime Capture - Modules in this flow are run after every daytime image is captured and initially saved.
Nighttime Capture - Modules in this flow are run after every nighttime image is captured and saved.
Day to Night Transition - Modules in this flow are run when Allsky switches from Daytime to Nighttime capturing per the Latitude, Longitude, and Angle you've defined in the WebUI.
Night to Day Transition - Modules in this flow are run when Allsky switches from Nighttime to Daytime capturing.
Periodic jobs - Modules in this flow are run periodically and are not related to image capture. Each module defines how often it runs.

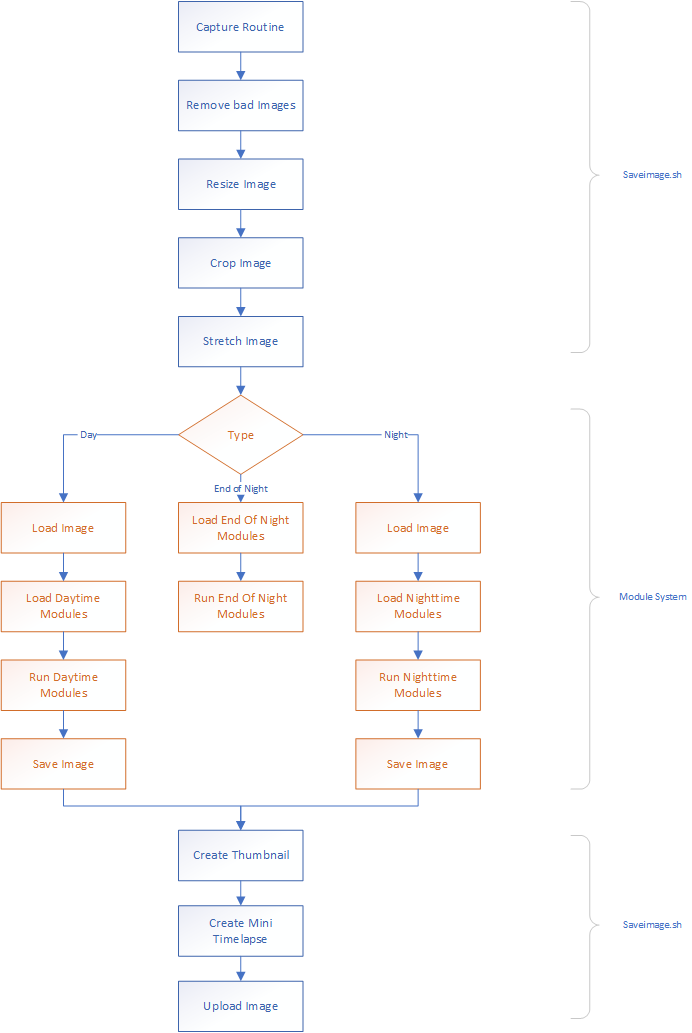

The diagram below shows each stage of the capture process and how modules fit into it.

The Module Manager

Modules are managed via the Module Manager.

Annotation	Icon	Description
Save		This is enabled when any changes are made.
Upload		This allows you to upload a zip file containing a new or updated module. Please see the section on uploading a modules for more details on how to use this feature.
Flow		The flow you wish to manage. If you have unsaved changes from the current flow you will be prompted to save them before switching
Settings		Displays the settings dialog for the Module Manager.
Debug		Displays the debug data for modules. This icon is only visible if it's been enabled in the Module Options.
Reset		Resets the selected flow to the installation default.
Restore		Restores the flow to the last backup. This option is only be visible if there is a restore point available.

Selecting a flow

From the drop down list select the flow that you wish to amend. If there are unsaved changes for the current flow then you will be prompted to save them before switching to a new flow. The current day/night flow will automatically be selected depending upon the current time of day.

Uploading a module

Please only upload modules from trusted sources. All modules uploaded are done so at your own risk.

To upload a module it must be in a zip file with the same name as the module. For example, if you have a module called allsk_test.py the zip file must be called allsky_test.zip.

Enabling a module

To enable a module drag it from the Available Modules column to the Selected Modules column and select the "Enabled" checkbox. The module will become active after the flow has been saved. You can set modules to be automatically enabled when dragging them to the Selected Modules column in the Module Editor Module Options.

Most modules require some configuration after they have been moved to the Selected Modules column. Clicking the Settings button will display any configuration options for the module.

Disabling a Module

There are two ways to disable a module:

Drag the module to the Available Modules column - this will disable the module and lose any settings for it.
Uncheck the "Enabled" checkbox - this will disable the module but retain any settings. This is the preferred method if you just wish to temporarily disable a module.

Setting the Module execution order

The modules are run in the order they appear in the Selected Modules column. To change the order simply drag the modules up or down the list. Modules highlighted in red can not be moved.

Module Manager Settings

Auto Enable - Automatically enables modules when added to the Selected Modules column.
Debug Mode - When enabled the debug option is available in the toolbar which will show the results and execution time for each module.
Periodic Timer - How frequently, in seconds, the Periodic jobs flow is run.

Modules

Modules form the heart of the module manager and there is a wide variety available. In this section each module is described in details along with all of the available settings.

Allsky Modules

The Allsky Modules are installed along with the main Allsky installer. The available modules are:

Load Image module

Available in Flows	Description
Daytime Capture Nighttime Capture	Loads the last image taken by Allsky. This is always the first module that is run during the Daytime and Nighttime Capture flows to ensure that the image is available to all subsequent modules. It is therefore not possible to move or remove it. This module is enabled by default so there is no need to install it.

Available in Flows

Description

Daytime Capture
Nighttime Capture

Loads the last image taken by Allsky. This is always the first module that is run during the Daytime and Nighttime Capture flows to ensure that the image is available to all subsequent modules. It is therefore not possible to move or remove it.

This module is enabled by default so there is no need to install it.

Save Image module

Available in Flows	Description
Daytime Capture Nighttime Capture	Saves the final image after all of the modules have run. This is always the last module run so it is not possible to move or remove it. This module is enabled by default so there is no need to install it.

Available in Flows

Description

Daytime Capture
Nighttime Capture

Saves the final image after all of the modules have run. This is always the last module run so it is not possible to move or remove it.

This module is enabled by default so there is no need to install it.

Mask Image module

Available in Flows	Description
Daytime Capture Nighttime Capture	This applies a mask to the image. This can be useful if there are artefacts outside of the image created by the lens that you wish to remove. Create a mask with pure white in the areas you wish to keep and black in the areas you wish to be black. See the section on creating and using masks below.

Clear Sky module

Available in Flows	Description
Nighttime Capture	This attempts to determine if the sky is clear. It does this by counting the stars in a Region of Interest (ROI) and if this is above a threshold the sky is assumed to be clear. The module's settings allow you to specify the ROI on the image and the parameters for detecting stars. If required the current calculated sky state can be sent to an MQTT broker. Certain other modules can also use the results of this module. For example the Star Count module can be set to only run if the sky is clear, as determined by this module. It is recommended to run this module early in the flow, generally after the Mask Image module.

Available in Flows

Description

Nighttime Capture

This attempts to determine if the sky is clear. It does this by counting the stars in a Region of Interest (ROI) and if this is above a threshold the sky is assumed to be clear. The module's settings allow you to specify the ROI on the image and the parameters for detecting stars. If required the current calculated sky state can be sent to an MQTT broker. Certain other modules can also use the results of this module. For example the Star Count module can be set to only run if the sky is clear, as determined by this module. It is recommended to run this module early in the flow, generally after the Mask Image module.

Region Of Interest - The ROI of the image to use for clear sky detection.
Fallback % - If no ROI is specified then this % around the center of the image will be used.
Clear Sky - The sky is assumed clear if more than this number of stars are found within the ROI.
Detection Threshold - Lowering this value will detect more stars and possibly false positives. Increasing it will detect fewer stars.
Distance Threshold - Any stars fond within this number of pixels of another star will only count as a single star. Reducing this value will increase the number of detected stars but also increase the number of false positives found.
Star Template Size - The size of a "standard" star. Reducing this value will detect more stars and false positives.
Mask Path - The path name to the mask that is applied to the image before any star detection. This is useful to exclude areas of the image that you do not want examined for stars.

These options are for debugging and should not be used for normal operation:

Annotate Stars - Draws a circle around each detected star. This is useful when tuning the detection values to see what is considered a star.
Enable Debug Mode - When selected an image is saved into the ~allsky/tmp/debug folder after each stage of the detection process.
Debug Image - If an image is specified then this is used rather than the last image taken by Allsky. This is useful for configuring the star detection during the day by using a previously captured image.

This is an advanced option and requires an MQTT broker. The setup and operation of a broker is beyond the scope of this document.

Enable MQTT - Enables publishing the Sky State to the MQTT Broker.
MQTT Broker address - The FQDN or IP address of the broker.
MQTT Broker port - The port number of the Broker.
MQTT Username - The username to login to the Broker.
MQTT Password - The password to login to the Broker.
MQTT Topic - The topic to post the Sky State to.

Star Count module

Available in Flows	Description
Nighttime Capture	This counts stars in the captured Allsky Image. Stars are counted by using a template that looks like a star and attempts to locate anything in the image that looks like it. This works well when the image is well exposed and masked to remove any areas that do not contain stars (e.g., buildings, trees, etc.) You will need to experiment with the detection values to get the best results. Annotating the stars in the image can be very helpful. The Moon can also cause issues. This module is experimental and as such may produce erroneous results.

Available in Flows

Description

Nighttime Capture

This counts stars in the captured Allsky Image.

Stars are counted by using a template that looks like a star and attempts to locate anything in the image that looks like it. This works well when the image is well exposed and masked to remove any areas that do not contain stars (e.g., buildings, trees, etc.)

You will need to experiment with the detection values to get the best results. Annotating the stars in the image can be very helpful. The Moon can also cause issues.

This module is experimental and as such may produce erroneous results.

Detection Threshold - Lowering this value will detect more stars, possibly false positives. Increasing it will detect fewer stars.
Distance Threshold - Any stars fond within this number of pixels of another star will only count as a single star. Reducing this value will increase the number of detected stars but also increase the number of false positives found.
Star Template size - The size of a "standard" star. reducing this value will detect more stars and false positives.
Mask Path - The path name to the mask that is applied to the image before any star detection. This is useful to exclude areas of the image that you do not want examined for stars.
Use Clear Sky - If the 'Clear Sky' module is running then its results will be used to determine if stars should be counted. If the sky is not clear then no attempt will be made to count stars.

These options are for debugging and should not be used for normal operation:

Annotate Stars - Draws a circle around each detected star. This is useful when tuning the detection values.
Enable debug mode - When selected an image is saved into the ~/allsky/tmp/debug folder after each stage of the detection process.
Debug Image - If an image is specified then this is used rather than the last image taken by Allsky. This is useful for configuring the star detection during the day by using a previosuly captured image.

Meteor Detection module

Available in Flows	Description
Nighttime Capture	This attempts to detect any meteors in the image. The detection method looks for hard edges in an image and thus is susceptible to false positives if the image is not masked to hide anything that isn't sky. You will need to experiment with the detection values to get the best results. Annotating the meteors in the image can be very helpful. The Moon can also cause issues. This module is experimental and as such may produce erroneous results.

Available in Flows

Description

Nighttime Capture

This attempts to detect any meteors in the image. The detection method looks for hard edges in an image and thus is susceptible to false positives if the image is not masked to hide anything that isn't sky.

You will need to experiment with the detection values to get the best results. Annotating the meteors in the image can be very helpful. The Moon can also cause issues.

This module is experimental and as such may produce erroneous results.

Mask Path - The path name to the mask that is applied to the image before any star detection. This is useful to exclude areas of the image that you do not want examined for stars.
Minimum Length - Any streaks longer than this number of pixels will be considered a meteor.
Use Clear Sky - If the Clear Sky module is running then its results will be used to determine if meteors should be detected. If the sky is not clear then no meteor detection will be attempted.

These options are for debugging and should not be used for normal operation:

Annotate Meteors - Any detected meteors will be highlighted in the image.
Enable debug mode - When selected an image is saved into the ~/allsky/tmp/debug folder after each stage of the detection process.

Export module

Available in Flows	Description
Daytime Capture Nighttime Capture	Exports all Allsky variables to a json file. By default all environment variables prefixed with `AS_` are exported but via the Module Options other Allsky variables can also be made available. This can be used by external programs.

File Location - The location to save the file. Certain Allsky variables can be used to construct the path - see the variables section below for more details.
Extra data to export - A comma separated list of additional variables to save.

Overlay module

Available in Flows	Description
Daytime Capture Nighttime Capture	Overlays data on the captured image. This module applies the fields defined in the Overlay Editor. Typically the overlay module will run towards if not at the end of the flow. This will allow it access to other variables created by modules.

Available in Flows

Description

Daytime Capture
Nighttime Capture

Overlays data on the captured image. This module applies the fields defined in the Overlay Editor.

Typically the overlay module will run towards if not at the end of the flow. This will allow it access to other variables created by modules.

Script module

Available in Flows	Description
Daytime Capture Nighttime Capture	This allows a script to be run. This should only be used by users that understand how scripts are developed/run on Linux. Extreme care must be taken when using this module as it could cause Allsky to stop operating.

File Location - The full path name to the script to execute. The module will check to ensure the script exists and is executable before any attempt is made to run it.

Save Image Data module

Available in Flows	Description
Daytime Capture Nighttime Capture	This module writes image related data to a database allowing it to be graphed in the WebUI.

User Modules

You must manually install User Modules from a separate GitHub repository.

Cloud Cover module

Available in Flows	Description
Nighttime Capture	This module requires external hardware for its operation. This module uses an MLX90614 to determine the amount of cloud cover. The MLX90614 is a non-contact Infra Red thermometer. It is used to measure the temperature of the sky and compare it to the ambient temperature. Generally the difference between the Sky temperature and ambient can be used to determine the amount of clouds. The exact theory for the calculations is beyond the scope of this documentation. Two different methods are available for determining the cloud cover: Simple - The difference between Sky and ambient temperature is used to determine the cloud cover. Advanced - Uses a polynomial model to correct the sky temperature reading. The forumale used in this method are derived from https://indiduino.wordpress.com/2013/02/02/meteostation/ and https://lunaticoastro.com/aagcw/TechInfo/SkyTemperatureModel.pdf

Available in Flows

Description

Nighttime Capture

This module requires external hardware for its operation.

This module uses an MLX90614 to determine the amount of cloud cover. The MLX90614 is a non-contact Infra Red thermometer. It is used to measure the temperature of the sky and compare it to the ambient temperature. Generally the difference between the Sky temperature and ambient can be used to determine the amount of clouds. The exact theory for the calculations is beyond the scope of this documentation.

Two different methods are available for determining the cloud cover:

Simple - The difference between Sky and ambient temperature is used to determine the cloud cover.
Advanced - Uses a polynomial model to correct the sky temperature reading. The forumale used in this method are derived from https://indiduino.wordpress.com/2013/02/02/meteostation/ and https://lunaticoastro.com/aagcw/TechInfo/SkyTemperatureModel.pdf

i2C Address - The default i2C address for the MLX90614 is 0x5A. If you need a different address specify it here in Hex.

Clear Below °C - Below this sky temperature it is assumed to be clear.
Cloudy Above °C - Above this sky temperature it is assumed to be cloudy.

Between the two above temperatures the sky is assumed to be partially cloudy.

Use advanced mode - If enabled the polynomial model will be used.

k1 - TBC
k2 - TBC
k3 - TBC
k4 - TBC
k5 - TBC
k6 - TBC
k7 - TBC

Details of the formulae used can be found on the lunaticoastro website.

Setting these values requires a lot of experimentation.

A typical connection diagram for a Cloud Cover sensor. As mentioned above the process of detecting clouds is not simple. The basic principle is to measure the difference between the ambient temperature and the sky temperature. The ambient is fairly easy to measure but the sky temperature presents some problems:

Field of View (FOV) - A narrow FOV will lead to results just above the sensor whereas a wide FOV will have less sensitivity. The narrow FOV versions provide a more accurate reading albeit with a much narrower FOV.
Moisture - Since the sensor needs to be pointed vertically, if any moisture from rain/snow sits on it then the reading will be inaccurate.

The moisture problem is a little more difficult to solve and the best solution is to mount the sensor horizontally and use a reflective surface to reflect the sky onto the sensor. This allows the sensor to stay dry.

Several environment variables are created that can be used in the Overlay Manager:

CLOUDAMBIENT - The ambient temperature.
CLOUDSKY - The sky temperature.
CLOUDCOVER - A string, either "Clear", "Partial" or "Coudy".
CLOUDCOVERPERCENT - The percentage of cloud cover, only available when using the Advanced method.

Dew Heater module

Available in Flows	Description
Daytime Capture Nighttime Capture Periodic jobs	This module requires external hardware for its operation. This module allows you to control a digital GPIO pin that can in turn be used to drive a dew heater. The GPIO pin cannot directly drive the heater, instead it must be used to drive some form of switch or relay / transistor etc. to control the heater. The electronics to do this are beyond the scope of this documentation. Some form of sensor is required to obtain the current temperature and humidity. The module supports the most common form of sensors available on the market as of 2024.

Available in Flows

Description

Daytime Capture
Nighttime Capture
Periodic jobs

This module requires external hardware for its operation.

This module allows you to control a digital GPIO pin that can in turn be used to drive a dew heater. The GPIO pin cannot directly drive the heater, instead it must be used to drive some form of switch or relay / transistor etc. to control the heater. The electronics to do this are beyond the scope of this documentation.

Some form of sensor is required to obtain the current temperature and humidity. The module supports the most common form of sensors available on the market as of 2024.

Sensor Type - The type of sensor to use:
- SHT31 - Uses an SHT31 on i2c address 0x44. The alert mode on the SHT31 is not supported.
- DHT22 - Uses a DHT22 sensor connected to a GPIO pin. The pin is selected in the "Input Pin" option.
- DHT11 - Uses a DHT11 sensor connected to a GPIO pin. The pin is selected in the "Input Pin" option.
- BME280-I2C - Uses a BME280 in i2c mode on address 0x77.
Input Pin - The GPIO pin for the DHT11/22 sensors.
i2C Address - If your sensor uses i2c and has a different address to the standard one for the sensor, enter the HEX address here.

Heater Pin - The GPIO pin for the heater control.
Startup Mode - Determines if the heater should be on when allsky starts or off.
Invert Relay - Normally the GPIO pin will go high to enable a relay. Selecting this option if the relay is wired to activate on the GPIO pin going Low.

Delay - The delay in seconds between sensor readings. If running in Daytime or Nightime Capture flows then the frame exposure time needs to be taken into account.
Limit - If the temperature is within this many degrees of the dew point the heater will be enabled or disabled.
Forced Temperature - If the temperature is below this value the heater will always be enabled.
Max Heater Time - Not yet implemented.

A typical connection diagram for a dew heater. In this example an SHT31 sensor is being used to provide the temperature and humidity data. The module will then determine if the heater is required and enable the relevant GPIO pin - 20 in this case.

Driving relays directly from the Pi's GPIO pins can be problematic and cause damage to your Pi. If you are using a module then please ensure it has a snubber and is optically isolated. Please check the Raspberry Pi FAQ for more details.

Several environment variables are created that can be used in the Overlay Manager:

DEWCONTROLAMBIENT - The ambient temperature.
DEWCONTROLDEW - The calculated dew point.
DEWCONTROLHUMIDITY - The Humidity.
DEWCONTROLHEATER - Either "on" or "off" indicating the status of the dew heater.

GPIO module

Available in Flows	Description
Night/Day Transition Day/Night Transition	This module requires external hardware for its operation. This module allows a GPIO pin's state to be set on the transitions between day/night and night/day. This could for example be used to trigger some external electronics to cover and uncover the camera to protect it from direct sunlight in very warm climates.

Available in Flows

Description

Night/Day Transition
Day/Night Transition

This module requires external hardware for its operation.

This module allows a GPIO pin's state to be set on the transitions between day/night and night/day. This could for example be used to trigger some external electronics to cover and uncover the camera to protect it from direct sunlight in very warm climates.

GPIO Pin - The GPIO pin to set.
Pin State - The state to set the pin to - 0 for off, 1 for on.

Discord module

Available in Flows	Description
Nighttime Capture Daytime Capture Night to Day Transition	This module requires configuration in Discord. It also requires Python 3.9.0 or greater. The module installer will not allow the module to be installed if you do not have the correct version of Python installed. This module allows images to be sent to Discord channels. The following images can be sent to Discord: Daytime images - To post these include the module in the Daytime Capture flow. Nightime images - To post these include the module in the Nighttime Capture flow. Startrails, Keograms, Daily Timelapse videos - To post these files include the module in the Night to Day Transition flow. Discord implements a rate limit on the API but it is very unlikely that you will hit any of the limits. Discord also implements a limit of 8 MB for any posted item. The timelapse videos may exceed this rate so if you wish to send them to Discord you will have to configure Allsky to limit video to less than 8 MB. The module checks before sending a file and if it exceeds the Discord limit the file is not sent and an error is logged in the allsky log file. You will need to create Webhooks in your Discord server. These can be created from the server settings as shown below:

Available in Flows

Description

Nighttime Capture
Daytime Capture
Night to Day Transition

This module requires configuration in Discord.
It also requires Python 3.9.0 or greater. The module installer will not allow the module to be installed if you do not have the correct version of Python installed.

This module allows images to be sent to Discord channels. The following images can be sent to Discord:

Daytime images - To post these include the module in the Daytime Capture flow.
Nightime images - To post these include the module in the Nighttime Capture flow.
Startrails, Keograms, Daily Timelapse videos - To post these files include the module in the Night to Day Transition flow.

Discord implements a rate limit on the API but it is very unlikely that you will hit any of the limits.
Discord also implements a limit of 8 MB for any posted item. The timelapse videos may exceed this rate so if you wish to send them to Discord you will have to configure Allsky to limit video to less than 8 MB. The module checks before sending a file and if it exceeds the Discord limit the file is not sent and an error is logged in the allsky log file.

You will need to create Webhooks in your Discord server. These can be created from the server settings as shown below:

Post Daytime Images - Select this option to post daytime images to the Discord Server.
Daytime Count - Every x images send the current image to the Discord server.
Webhook URL - The webhook for the daytime images. The value for this field is created in the Discord server's settings under "integration".

These settings are the same as for Day Time.

Post Startrails Images - Select this option to post startrails images to the Discord Server.
Webhook URL - The webhook for the startrails images. The value for this field is created in the Discord server's settings under integration.

Post Keograms Images - Select this option to post keogram images to the Discord Server.
Webhook URL The webhook for the keogram images. The value for this field is created in the Discord server's settings under integration.

Post Timelapse videos - Select this option to post timelapse videos to the Discord Server.
Webhook URL - The webhook for the timelapse videos. The value for this field is created in the Discord server's settings under "integration".

Discord implements a limit of 8 MB for any posted item. It's possible that the timelapse videos may exceed this rate so if you wish to send them to Discord you will have to configure Allsky to ensure that the video is less than 8 MB. The module will check before sending the file and if it exceeds the Discord limit it will not be sent and an error logged in the allsky log file.

Rain module

Available in Flows	Description
Nighttime Capture Daytime Capture	This module requires external hardware. This module uses an external sensor to detect rain. There are various cheap sensors available to detect rain that either provide an analog or digital output. This module only supports sensors with a digital output.

Available in Flows

Description

Nighttime Capture
Daytime Capture

This module requires external hardware.

This module uses an external sensor to detect rain. There are various cheap sensors available to detect rain that either provide an analog or digital output. This module only supports sensors with a digital output.

Input Pin - The GPIO pin the rain sensor is connected to.
Invert Sensor - Normally the sensor will be high for clear and low for rain. This setting will reverse this.

A typical connection diagram for rain detection using a cheap rain detection module.

These cheap sensors work but the contact boards suffer badly from corrosion. A much better module is described here. Whilst more expensive and requiring a 12 volt supply, this is a far superior rain and snow detector.

Two environment variables are created that can be used in other modules or the Overlay Manager:

RAINSTATE - A text string either "Not Raining" or "Raining".
ALLSKYRAINFLAG - A text string either "False" or "True".

Open Weather Map module

Available in Flows	Description
Periodic jobs	This module reads weather data from the free Open Weather Map API. To use this module you need to signup for a free API key on the openweathermap website. The location used for the weather is your Latitude and Longitude. The free tier of the API is limited to 1000 calls per day so you will need to configure the settings appropriately. Reading the data every 10 minutes is more than frequent enough and will ensure you do not exceed the API limit. Several environment variables are created that can be used in the Overlay Manager: OWWEATHER - A text string representing the weather. OWWEATHERDESCRIPTION - A text string representing the weather. OWTEMP - The temperature. OWTEMPFEELSLIKE - What the temperature feels like. OWTEMPMIN - The minimum temperature. OWTEMPMAX - The maximum temperature. OWPRESSURE - The pressure. OWHUMIDITY - The humidity. OWWINDSPEED - The wind speed. OWWINDDIRECTION - The wind direction. OWWINDGUST - The wind gust speed. OWCLOUDS - The cloud cover. OWRAIN1HR - Rainfall within the last hour. OWRAIN3HR - Rainfall within the last three hours. OWSUNRISE - Time the Sun rises. OWSUNSET - Time the Sun sets.

Available in Flows

Description

Periodic jobs

This module reads weather data from the free Open Weather Map API. To use this module you need to signup for a free API key on the openweathermap website. The location used for the weather is your Latitude and Longitude.

The free tier of the API is limited to 1000 calls per day so you will need to configure the settings appropriately. Reading the data every 10 minutes is more than frequent enough and will ensure you do not exceed the API limit.

Several environment variables are created that can be used in the Overlay Manager:

OWWEATHER - A text string representing the weather.
OWWEATHERDESCRIPTION - A text string representing the weather.
OWTEMP - The temperature.
OWTEMPFEELSLIKE - What the temperature feels like.
OWTEMPMIN - The minimum temperature.
OWTEMPMAX - The maximum temperature.
OWPRESSURE - The pressure.
OWHUMIDITY - The humidity.
OWWINDSPEED - The wind speed.
OWWINDDIRECTION - The wind direction.
OWWINDGUST - The wind gust speed.
OWCLOUDS - The cloud cover.
OWRAIN1HR - Rainfall within the last hour.
OWRAIN3HR - Rainfall within the last three hours.
OWSUNRISE - Time the Sun rises.
OWSUNSET - Time the Sun sets.

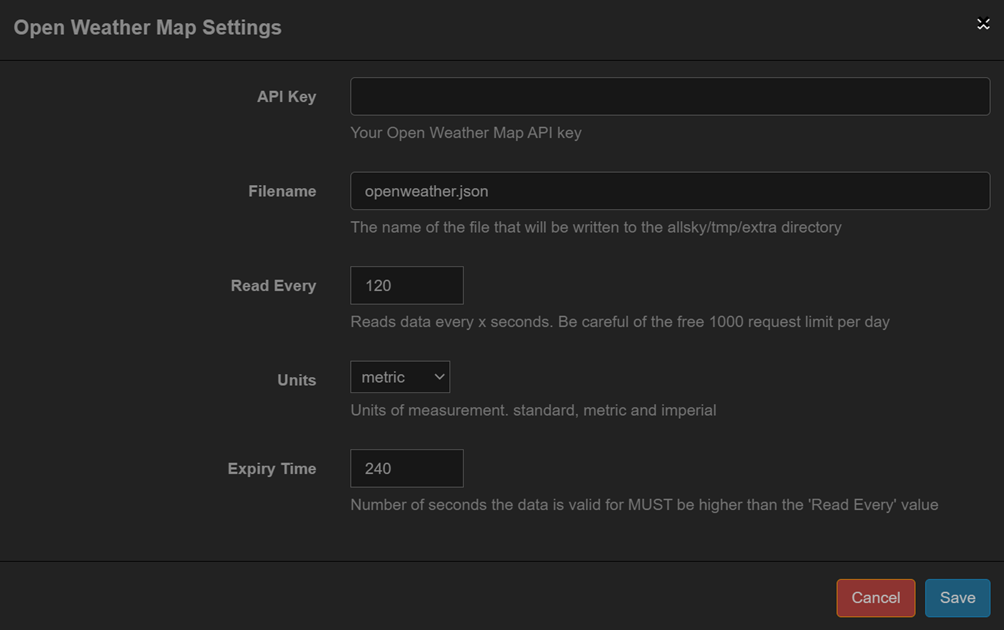

API Key - The API key you generated after signing up to Open Weather Map.
Filename - The name of the "extra data" file the Open Weather Map data is saved in. Normally you should not need to change this.
Read Every - Call the API every x seconds. Be mindful of the 1000 API limit per day when setting this value.
Units - The units to express the data in, either "Standard" (SI Units), "Metric" or "Imperial".
Expiry Time - The number of seconds the data is valid for. See the Overlay Editor documentation for details.

GPS module

Available in Flows Description

Available in Flows	Description
Periodic jobs	This module was developed for those that use their allsky cameras in mobile locations. It was developed to allow the Pi's location and clock to be set from the GPS data. This module requires a GPS connected to the Pi that can be managed by gpsd. NOTE: The HDMI and Wifi on the Pi 4 is VERY noisy and will interfere with most GPS modules. To get around this please ensure that the GPS receiver and antenna is mounted at least one meter (three feet) away from the Pi. Time synchronisation Even if you set the time sync options in the GPS module the time will only be synchronised if the Pi is NOT having its time updated from the Internet. To test if the time is currently being synchronised fom the Internet enter the following command: `timedatectl status` Output similar to the following will be produced: `Local time: Fri 2023-02-03 23:18:36 GMT` `Universal time: Fri 2023-02-03 23:18:36 UTC` `RTC time: n/a` `Time zone: Europe/London (GMT, +0000)` `System clock synchronized: no` `NTP service: inactive` `RTC in local TZ: no` Note that the "System clock synchronized" value is "no" which means the GPS module will be allowed to set the time. Several environment variables are created that can be used in the Overlay Manager: PIGPSFIX - A text string, either "Yes" or "No", indicating if the GPS has a fix or not. PIGPSUTC - The UTC time from the GPS. PIGPSLOCAL - The local time from the GPS. PIGPSOFFSET - The time offset from UTC in hours. PIGPSLAT - The GPS latitude in degrees, minutes, and seconds. PIGPSLON - The GPS longitude in degrees, minutes, and seconds. PIGPSLATDEC - The GPS latitude in decimal degrees, minutes, and seconds. PIGPSLONDEC - The GPS longitude in decimal degrees, minutes, and seconds. PIGPSFIXDISC The latitude and longitude discrepancy string, if there is a decrepancy found.

Periodic jobs

This module was developed for those that use their allsky cameras in mobile locations. It was developed to allow the Pi's location and clock to be set from the GPS data.

This module requires a GPS connected to the Pi that can be managed by gpsd.

NOTE: The HDMI and Wifi on the Pi 4 is VERY noisy and will interfere with most GPS modules. To get around this please ensure that the GPS receiver and antenna is mounted at least one meter (three feet) away from the Pi.

Time synchronisation

Even if you set the time sync options in the GPS module the time will only be synchronised if the Pi is NOT having its time updated from the Internet. To test if the time is currently being synchronised fom the Internet enter the following command:
timedatectl status

Output similar to the following will be produced:

               Local time: Fri 2023-02-03 23:18:36 GMT
           Universal time: Fri 2023-02-03 23:18:36 UTC
                 RTC time: n/a
                Time zone: Europe/London (GMT, +0000)
System clock synchronized: no
              NTP service: inactive
          RTC in local TZ: no

Note that the "System clock synchronized" value is "no" which means the GPS module will be allowed to set the time.

Several environment variables are created that can be used in the Overlay Manager:

PIGPSFIX - A text string, either "Yes" or "No", indicating if the GPS has a fix or not.
PIGPSUTC - The UTC time from the GPS.
PIGPSLOCAL - The local time from the GPS.
PIGPSOFFSET - The time offset from UTC in hours.
PIGPSLAT - The GPS latitude in degrees, minutes, and seconds.
PIGPSLON - The GPS longitude in degrees, minutes, and seconds.
PIGPSLATDEC - The GPS latitude in decimal degrees, minutes, and seconds.
PIGPSLONDEC - The GPS longitude in decimal degrees, minutes, and seconds.
PIGPSFIXDISC The latitude and longitude discrepancy string, if there is a decrepancy found.

LAT/LON Warning - If enabled a warning will be generated, both in the log files and as an Allsky variable if the GPS position does not match your Latitude and Longitude. The comparison is done to 2 decimal places to allow for GPS fluctuation.
Set LAT/LON - If enabled your Latitude and Longitude will be set from the GPS.
Set Time - If enabled the time on the Pi will be set from the GPS.
Set Every - If the "Set Time" option is enabled the time on the Pi will be set every this number of seconds.
Extra Data Filename - The name of the file to create the GPS data in for the Overlay Manager. Normally you will not need to change this.
Discrepancy Warning - if the "Lat/Lon Warning" is enabled and a discrepancy is found this text will be set in the variable for the Overlay Manager.

Obfuscate Position - If enabled the values below will be used to modify the GPS position. This is designed to allow you to display the GPS position on an overlay without giving away your exact position.
Latitude Metres - The number of metres to offset the latitude by. Can be a positive or negative number.
Longitude Metres - The number of metres to offset the longitude by. Can be a positive or negative number.

A typical setup with a GPS connected to a Pi.

PI Status module

Available in Flows

Description

Periodic jobs

This module reads information about the Pi and makes it availbale for use in the Overlay Manager.

Several environment variables are created that can be used in the Overlay Manager:

DISKSIZE - The size of the main disk in the Pi.
DISKUSAGE - Amount of space used on the disk.
DISKFREE - Amount of free space on the disk.
CPUTEMP - CPU temp in C/F Only available if the Allsky temp settings is Celsius or Fahrenheit.
CPUTEMP_C - CPU temp in C Only available if the Allsky temp settings is set to Celsius.
CPUTEMP_F - CPU temp in F Only available if the Allsky temp settings is set to Fahrenheit.
THROTTLEDBINARY - Output of vcgencmd get_throttled.
TSTAT{X} - Throttled bits, see table below.
TSTATSUMARYTEXT - Textual summary of all of the tstats bits.

Several other variables are also available and are mainly related to clock frequencies and voltages.

Tstat bits

These values are text and either "true" or "false":

Variable	Meaning
TSTAT0	Under-voltage detected.
TSTAT1	Arm frequency capped.
TSTAT2	Currently throttled.
TSTAT2	Currently throttled.
TSTAT3	Soft temperature limit active.
TSTAT16	Under-voltage has occurred.
TSTAT17	Arm frequency capping has occurred.
TSTAT18	Throttling has occurred.
TSTAT19	Soft temperature limit has occurred.

Read Every - Reads the pi status every this number of seconds.

Creating and Using Masks

Several modules can make use of masks, which are used to "hide" areas of the image to improve the final image. For example, the Star Count module can use a mask to hide all areas of the image that may contain things that will confuse the star detection algorithm, such as local light pollution like a far away street light.

Masks must be created in image editing software such as Gimp or Photoshop. There are no tools available within Allsky to create masks.

Masks can also be used to clean up or hide parts of the image like buildings, trees, or anything not created by the lens.

Consider the following raw image from the camera. The areas outside of the image created by the lens contain a lot of noise.
To clean this up we create a mask which is an image that only contains pure white and pure black - no gray. Any areas in white will be kept and any areas in black will be masked.
After the mask has been applied the resulting image looks a lot cleaner.

Masks are also used to hide areas of the image for some modules like Star Count. This prevents false positives. Consider the following example of another raw image from the camera.

There is a lot of non-sky in the image like houses, trees, etc. These items can cause some detection modules to get confused so by masking them they will not be included in any of the calculations.

This mask hides areas of the image that are not sky.

Since this mask is being used to mask specific areas of the image, if the camera is moved then the mask may have to be recreated.

After the mask has been applied the resulting image will allow the various modules to process the image more effectively.

Some modules will apply the mask but it will not be used for the final image. Examples of this are masks used to mask the image for star/meteor detection.

Masks do not have to be circular, they can be any shape you like. In fact the masks used for star and meteor detection are very likely to be a strange shape.

GPIO

Several of the modules require the selection of a GPIO pin on the pi. The module editor has an inbuilt GPIO selector to help ease the process of selecting the required pin.

When clicking on the GPIO selection the GPIO selector is displayed allowing you to select the required pin. In this example GPIO27 is currently selected.

Currently only the PI 3/4/5 GPIO pins are implemented.

Module Performance / Debugging

It's important that modules do not take too much time to run as this will cause load issues on the Pi.

After Allsky has taken an image an initial copy is saved and processed in the background, including running the relevant module flow. It's important that this process finishes before the next image is saved. If the module flow takes too long multiple save image processes will be running, and will start to cause performance issues on the Pi.

TIP - When installing a new module ensure debug mode is enabled in the Module Manager Module Options and monitor how long the new module is taking and what effect it's having on the overall flow time.

The Module Manager Debug Window

The debug dialog box shows each of the enabled modules, how long they took to run, the result of the last run, and the total execution time for all modules.

This information is useful if you find there are too many save image processes running or for determining if any particular module is causing an issue.

The Allsky debug log

The main Allsky debug log will contain information from the module processor. The amount of information logged depends upon the main Allsky Debug Level setting - when 0 only critical module errors are logged. Any other log level will display verbose information as shown below.

Periodic module output is logged to the allskyperiodic.log file. This file will be in the same location as the main Allsky log file, typically /var/log.

Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Loading config...
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Loading recipe...
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_loadimage.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_loadimage
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Image
/home/alex/allsky/tmp/image-20221023210636.jpg Loaded
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_loadimage.py ran ok in 0.493601s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_pistatus.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_pistatus
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_pistatus.py ran ok in 0.041586s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_saveintermediateimage.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_saveintermediateimage
Oct 23 21:08:15 allsky allsky.sh[24948]: /home/alex/allsky/images/20221023-clean
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Image
/home/alex/allsky/images/20221023-clean/image-20221023210636.jpg Saved
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module
allsky_saveintermediateimage.py ran ok in 0.442361s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_clearsky.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_clearsky
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Created star template. Radius - 6
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Sky is NOT clear. 5 Stars found, clear limit is 40
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: MQTT disabled
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_clearsky.py ran ok in 0.677157s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_starcount.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_starcount
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Sky is not clear so ignoring starcount
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_starcount.py ran ok in 9.8e-05s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_meteor.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_meteor
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Sky is not clear so ignoring meteor detection
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_meteor.py ran ok in 6.8e-05sv
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_dewheater.py ---
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_dewheater
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Turning Heater on
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Temperature within limit temperature
11.13, limit 10, dewPoint 8.74
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Sensor SHT31 read. Temperature 11.13
Humidity 85.19 Dew Point 8.74 Heat Index -14.47
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_dewheater.py ran ok in 0.040973s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_maskimage.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_maskimage
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_maskimage.py ran ok in 0.516113s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_cloud.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_cloud
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Cloud state - Cloudy 100.0. Sky Temp
10.370000000000005, Ambient 10.450000000000045
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_cloud.py ran ok in 0.002392s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_export.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_export
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Allsky data exported to
/home/alex/allsky/tmp/allskydata.json
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Module allsky_export.py ran ok in 0.001127s
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_overlay.py --------
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Attempting to load allsky_overlay
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Config file set to
/home/alex/allsky/config/overlay.json
Oct 23 21:08:15 allsky allsky.sh[24948]: INFO: Loading Config took 0.00063 Seconds.
Elapsed Time 0.000662 Seconds.
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Adding Text Fields took 0.255803
Seconds. Elapsed Time 0.685933 Seconds.
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Adding Image Fields took 0.248668
Seconds. Elapsed Time 0.934638 Seconds.
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Saving Final Image took 0.006398
Seconds. Elapsed Time 0.941075 Seconds.
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Writing debug data took 4.5e-05
Seconds. Elapsed Time 0.941138 Seconds.
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Debug information written to
/home/alex/allsky/tmp/overlaydebug.txt
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Annotation Complete Elapsed Time 0.942793 Seconds.
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Module allsky_overlay.py ran ok in 0.951637s
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_savedetails.py --------
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Attempting to load allsky_savedetails
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Module allsky_savedetails.py ran ok in 0.128938s
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: -------- Running Module allsky_saveimage.py --------
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Attempting to load allsky_saveimage
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Image
/home/alex/allsky/tmp/image-20221023210636.jpg Saved, quality 100
Oct 23 21:08:16 allsky allsky.sh[24948]: INFO: Module allsky_saveimage.py ran ok in 0.388242s

Developing Custom Modules

The module system is designed to be extended by developing custom modules.

Personal modules should be saved in the ~/allsky/config/myFiles/modules directory which you must create (mkdir -p ~/allsky/config/myFiles/modules).
This directory is automatically propogated to new Allsky releases.

Python Versions

Modules are developed in Python and should use the latest version available for the Pi. It should be noted that whilst multiple versions of Python can be installed on a Pi it's best just to use the version that ships with the OS. Generally that may mean reinstalling your Allsky installation to get the latest version of python. Running multiple versions of python is beyond the scope of this documentation.

Contributing a module

There is a central GitHub repository that you can contribute your modules to. You do not have to do this but over time we would like to build this into a comprehensive library of available modules.

If you wish to contribute your module then please:

Create a fork of the User Modules repository from https://github.com/AllskyTeam/allsky-modules.
Create a new branch in your forked repository, calling the branch the name of your module.
Develop your module and commit it to the branch.
Create a pull request into the allsky-modules repo from your branch.
The module will be checked and if all is ok will be merged into the main repository.
If you need to make changes to the module after it's been merged then refork the main repo, create a branch from the master branch named as your module, then commit a PR to main master.

The structure of a module is important so please use the following folder/file structure.

allsky_MODULENAME

allsky_MODULENAME.py - The main modules code.
requirements.txt - Any python packages required by the plugin, will be installed with pip3. If you don't need any additional packages don't include this file.
packages.txt - Any aditional libraries required by the module, will be installed using apt. If you don't need any additional packages don't include this file.
README.md - Markdown file with any special instructions required for the module. If there are none do not include this file.

When specifying python libraries DO NOT include numpy in ANY requirements.txt file as changing the version could cause issues with Allsky.

Anatomy Of A Module

A module consists of two key parts:

The metadata variable defines everything the Module Manager needs to run the module. This includes basic information about the module and the configuration options it requires.
The module entry point is the main function that is called by the Module Manager.

Every module MUST import the allsky_shared module. This module is used to pass data from the flow processor to each module.

The Meta Data Variable

Please refer to the Boiler Plate example module for more details on this variable. That example includes all of the available options.

Field	Type	Mandatory	Description
name	String	Yes	The name of the module. This field is displayed as the heading for a module when it's displayed in the Module Manager.
description	String	Yes	The description of the module. This field is displayed in the Module Manager.
module	String	Yes	The module name. MUST be in the format allsky_{module name} i.e., allsky_boilerplate.
version	String	No	The version of the module. If this field is not present then the version of the main Allsky software will be used.
enabled	String	No	"true" or "false". If set to true the module is enabled, handy for setting its initial state. NOTE: If the option to auto enable modules is enabled in the Module Manager then this will take priority over that value.
events	Dictionary	Yes	A list of the flows the module should be displayed in, one or more of: Daytime Capture Nighttime Capture Night to Day Transition Day to Night Transition Periodic jobs
experimental	String	No	"true" or "false". If set to true a warning is displayed in the Module Manager indicating the module is experimental.
arguments	Dictionary	No	A list of the values that will be passed to the main processing method of the module in the params array. This exists to allow you to specify defaults for the fields. Definitions for the fields are defined in the argumentdetails field below.
argumentdetails	Dictionary	No	Dictionary of definitions for each of the arguments.
businfo	string	No	Set to i2c if the module uses the i2c bus.
changelog	Dictionary	Yes	Changelog information for the module, see below.

The argumentdetails Dictionary

A module may require that the user can set values for its paramaters. This is implemented via the "arguments" and "argumentdetails" sections. If there are any argumentdetails present then a settings option will be displayed in the Module Manager. Clicking on the setting's option displays a dialog allowing the module's settings to be changed. The dialog is created automatically from the options defined in the "argumentdetails" section.

Field	Type	Mandatory	Description
required	String	Yes	"true" or "false". If set to true the field is required. NOTE: This will be implemented in a future release.
description	String	Yes	This is the label for the field in the module settings dialog.
help	String	No	This is the help text for the field in the module settings dialog.
tab	String	No	The tab to display the field in. If left blank the field will be displayed on the 'Home' tab. This is handy for grouping fields into seperate tabs.
type	Dictionary	No	A Dictionary defining the type of field. The key is the name of the field, the same name as used in the arguments section. If no type is defined the field is assumed to be a text field.

Available field types

If blank the field is assumed to be a text entry field.

fieldtype	Description	Additional paramaters
select	A drop down list from which the user can select an option.	values - A comma separated list of values for the drop down. The default value for the drop down list is specified in the arguments section.
checkbox	A checkbox allowing the entry of a true or false value.	None
spinner	A numerical entry field with up and down controls to alter the value.	min - The minimum value for the field. max - The maximum value for the field. step - The step for the field.
gpio	Displays a dialog allowing the user to select a GPIO pin on the Pi. This field type is useful when developing a module that requries a user to select a GPIO pin.	None
image	Displays a dialog allowing the user to select/upload an image. This is useful where a module may require the user to select a mask.	None
roi	Displays a dialog allowing the user to select a Region Of Interest (ROI) from the captured image.	None

The changelog Dictionary

A simple example with a single change, one change for the revision:

"v1.0.0" : [
	{
		"author": "Alex Greenland",
		"authorurl": "https://github.com/allskyteam",
		"changes": "Initial Release"
	}
],

A slightly more complex change, multiple changes for a single revision:

"v1.0.1" : [
	{
		"author": "Damian Grocholski (Mr-Groch)",
		"authorurl": "https://github.com/Mr-Groch",
		"changes": [
			"Added extra pin that is triggered with heater pin",
			"Fixed dhtxxdelay (was not implemented)",
			"Fixed max heater time (was not implemented)"
		]
	}
],

A change with multiple authors, not the change can be an array as in the above example:

"v1.0.4" : [
	{
		"author": "Alex Greenland",
		"authorurl": "https://github.com/allskyteam",
		"changes": "Add AHTx0 i2c sensor"
	},
	{
		"author": "Andreas Schminder",
		"authorurl": "https://github.com/Adler6907",
		"changes": "Added Solo Cloudwatcher"
	}
],

Complete metadata example

This is a full example of all of the possible options available in the metaData dictionary. This example can be found in the boilerplate module in the additional modules repository on GitHub.

metaData = {
    "name": "All Sky Boilerplate",
    "description": "Example module for AllSky",
    "module": "allsky_boilerplate",
    "version": "v1.0.0",
    "events": [
        "day",
        "night",
        "endofnight",
        "daynight",
        "nightday",
        "periodic"
    ],
    "experimental": "false",
    "arguments":{
        "textfield": "",
        "select": "value1",
        "checkbox": "",
        "number": "10",
        "gpio": "",
        "image": "",
        "roi": ""
    },
    "argumentdetails": {
        "textfield": {
            "required": "true",
            "description": "Text Field",
            "help": "Example help for the text field",
            "tab": "Field Types"
        },
        "select" : {
            "required": "false",
            "description": "Select Field",
            "help": "Example help for a select field",
            "tab": "Field Types",
            "type": {
                "fieldtype": "select",
                "values": "None,value1,value2,value3"
            }
        },
        "checkbox" : {
            "required": "false",
            "description": "Checkbox Field",
            "help": "Example help for the checkbox field",
            "tab": "Field Types",
            "type": {
                "fieldtype": "checkbox"
            }
        },
        "number" : {
            "required": "true",
            "description": "Number Field",
            "help": "Example help for the number field",
            "tab": "Field Types",
            "type": {
                "fieldtype": "spinner",
                "min": 0,
                "max": 1000,
                "step": 1
            }
        },
        "gpio": {
            "required": "true",
            "description": "GPIO Field",
            "help": "Example help for the GPIO field",
            "tab": "Field Types",
            "type": {
                "fieldtype": "gpio"
            }
        },
        "image" : {
            "required": "false",
            "description": "Image Field",
            "help": "Example help for the image field",
            "tab": "Field Types",
            "type": {
                "fieldtype": "image"
            }
        },
        "roi": {
            "required": "true",
            "description": "Region of Interest field",
            "help": "Help for the region of interest field",
            "tab": "Field Types",
            "type": {
                "fieldtype": "roi"
            }
        },
        "textfield1": {
            "required": "true",
            "description": "Text Field1",
            "help": "Example help for the text field in a new tab",
            "tab": "Another Tab"
        }
    },
    "enabled": "false",
    "changelog": {
        "v1.0.0" : [
            {
                "author": "Alex Greenland",
                "authorurl": "https://github.com/allskyteam",
                "changes": "Initial Release"
            }
        ],
        "v1.0.1" : [
            {
                "author": "Alex Greenland",
                "authorurl": "https://github.com/Mr-Groch",
                "changes": [
                    "Change 1",
                    "Change 2"
                ]
            }
        ],
        "v1.0.2" : [
            {
                "author": "Alex Greenland",
                "authorurl": "https://github.com/allskyteam",
                "changes": [
                    "Change 1",
                    "Change 2"
                ]
            },
            {
                "author": "Andreas Schminder",
                "authorurl": "https://github.com/Adler6907",
                "changes": "Change 1"
            }
        ]
    },
    "businfo": [
        "i2c"

    ],
    "changelog": {
        "v1.0.0" : [
            {
                "author": "Alex Greenland",
                "authorurl": "https://github.com/allskyteam",
                "changes": "Initial Release"
            }
        ],
        "v1.0.1" : [
            {
                "author": "Alex Greenland",
                "authorurl": "https://github.com/allskyteam",
                "changes": [
                    "Change 1",
                    "Change 2",
                    "Change 3"
                ]
            }
        ],
        "v1.0.2" : [
            {
                "author": "Alex Greenland",
                "authorurl": "https://github.com/allskyteam",
                "changes": "Change 1"
            },
            {
                "author": "John Doe",
                "authorurl": "https://github.com/allskyteam",
                "changes": [
                    "Change 1",
                    "Change 2",
                    "Change 3"
                ]
            }
        ]
    }
}

The Allsky Shared module

To improve the performance of modules a common shared module called allsky_shared is used. It contains both helper functions and data from the main capture process. The module exists so that each individual module does not have to perform tasks like loading an image.

Allsky Shared module data

Variable	Description
args	The arguments passed to the module processor (not normally needed).
LOGLEVEL	The Allsky Debug Level (not normally needed).
CURRENTIMAGEPATH	The full path to the current image (not normally needed, not available in daynight, nightday or periodic).
TOD	The time of day not available in daynight, nightday or periodic).
fullFilename	The final image filename i.e. image.jpg not available in daynight, nightday or periodic).
image	a numpy array of the current image - use this for any processing of the captured image. DO NOT attempt to load the image from disk within a module as this will have a severe performance impact on the module. Not available in daynight, nightday or periodic).

Allsky Shared module helpers

Function	Description
log(level, message)	Logs an entry to the allsky log file if the Debug Level is above "level". Errors are always logged. When a module needs to write to a log it should use this function rather than write to any log files directly. This function will ensure that the log message appears in the main Allsky log file.
getEnvironmentVariable(name, fatal=False, error='')	Gets an environment variable, can terminate if needed by setting the fatal variable and an error code.
var_dump(variable)	Pretty dump of a variable. This is handy for debugging modules. The output will appear in the main Allsky log file.
getSetting(settingName)	Gets a setting from the camera settings file.
writeDebugImage(module, fileName, image)	Writes a debug image to the ${ALLSKY_TMP}/debug/{module} folder. This can be useful when debugging a module to check the output at various stages.
startModuleDebug(module)	Creates the debug directories for a module.
convertPath(path)	Replaces Allsky variables in a string and is useful if a module enters a directory based upon any of the Allsky variables. For example, ${ALLSKY_TMP}/allskydata.json will have the ${ALLSKY_TMP} variable replaced with its real path. This function can be used to replace any of the Allsky variables in a string.
checkAndCreatePath(filePath)	Checks if the passed file exists and if not creates it.
checkAndCreateDirectory(filePath)	Checks if the passed directory exists and if not creates it.
raining()	Only available if the Rain module is being used - returns a boolean flags to indicate the rain state.
convertLatLon(input)	Converts the string "52.2S" to decimal -52.2.
setLastRun(module)	Sets the last run time for a module. Useful for where a module only needs to run periodically.
shouldRun(module, period)	Determines if a module should run based on the period.
dbAdd(key, value)	Adds the key/value pair to the internal database.
dbUpdate(key, value)	Updates the key/value pair in the internal database.
isFileWriteable(fileName)	Determines if the file is writeable.
isFileReadable(fileName)	Determines if the file is readable.
saveExtraData(fileName, extraData)	Saves the extraData in fileName.
deleteExtraData(fileName)	Deletes the extra data fileName.
getGPIOPin(pin)	Returns the board.Pin from the passed in pin (int).
createTempDir(path)	Creates a temporary directory.
cleanupModule(moduleData)	Removes any files or environment variables for a module.
